Limitorque
The next generation in smart actuation. These automated actuators will help make life easier for you and your maintenance team.
The Acrodyne Limitorque range of actuators offer total valve control.
In addition to the normal task of opening and closing, they can be used with quarter-turn settings.

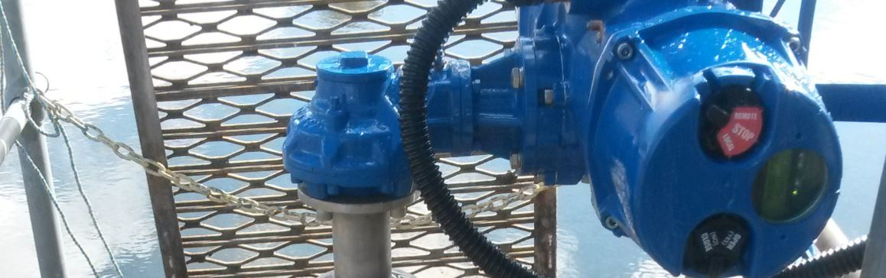

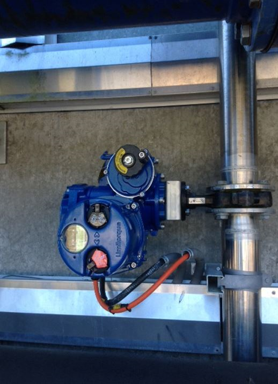

Frequently used in upgrades to wastewater treatment plants, the Limitorque actuators are frequently used to replace manually operated valves. Manual valves require multiple turns but these actuators eliminate that requirement. As a result, health and safety issues are significantly reduced.
Download this case study now. Acrodyne waste water, Limitorque Electric Actuator
BLUETOOTH ENABLED
The MX Actuator is now Bluetooth enabled. It’s a patented absolute encoder that doesn’t require battery back-up. It’s a patented absolute encoder that doesn’t require any battery back-up. The unit has easy to use menus, and the use of Hall-effect devices eliminates potentially troublesome reed switches.
NO BATTERY BACK-UP REQUIRED
Absolute Position Encoder Limitorque was the first electronic actuator supplier to use an absolute encoder which doesn’t require battery back-up for positioning. Customers specify absolute encoders for uninterrupted performance and the MX meets customer expectations with an improved, 18-bit optical, 100% repeatable device. Position information is accurate with or without electrical power. The 18 bits also means that the span of the MX encoder is now almost 10x the original – good for ~10,000 drive sleeve rotations. The encoder has redundant circuits ensuring performance even in the event of up to 50% component failure, continuing to provide reliable data while alerting the user to any faults.
Downloadable Brochures
ACROTORQ_MX-V1.1
ACROTORQ_QX-V1.1
LFENFL002-00-A4-LPC
